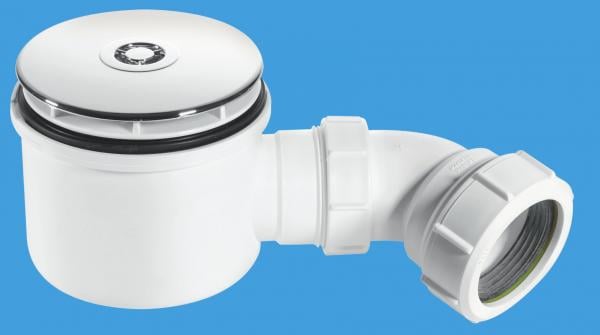

McAlpine 2" 90mm Hi-Flow Shower Trap - ST90CPB-S-HP

McAlpine 2" 90mm Hi-Flow Shower Trap - ST90CPB-S-HP

SKU ST90CPB-S-HP
by McAlpine
£31.99 - £31.99
£31.99
£31.99 - £31.99
£31.99
Availability:
In stock

Delivery

Delivery will be made within 3-5 business days from receipt of order, excluding Bank Holidays.*

Product Details

90mm x 50mm Water Seal Shower Trap with 2" Universal Outlet High-Flow High-Performance Trap with removable 110mm Flange.

  • Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
  • Suitable for shower trays with a 90mm waste hole
  • 50mm Water Seal
  • 1½" BSP Thread
  • Supplied with 135° Bend - BSP coupling nut x 2" Universal
  • Removable 110mm flange facilitates easy cleaning
  • Flow rate 50 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
  • Overall height 90mm
  • Suit trays with maximum thickness of 15mm
  • Manufactured in polypropylene
  • 90mm under-tray dimension
  • Traps ST90CP10-HP, ST90CB10-HP and ST90WH10-HP are suitable for tray thickness 4-15mm
  • Traps ST90CPB-P-HP and ST90CPB-S-HP are suitable for tray thickness 5-14mm
  • Note: Longer flanges are available to suit thicker trays

    • For Product codes ST90CP10-HP, ST90CB10-HP, and ST90WH10-HP, additional longer flange code is:
      STW9050WSTBDY-43MM.
      This flange is suitable for tray thickness of 21-29mm
    • For product code ST90CPB-P-HP, additional longer flange code is:
      P-CPB-ST90-P50-43.
      This flange is suitable for tray thickness of 21-30mm
    • For product code ST90CPB-S-HP, additional longer flange code is:
      P-CPB-ST90-S50-43.
      This flange is suitable for tray thickness of 21-30mm
